方案概述
聯恩電子(Linkwen Electronics)針對次世代光通訊需求,推出 50GPON ONU 產線整合測試方案 。本方案核心在於「一站式整合」與「高效率自動化」,能顯著縮短測試時間並提升單位小時產量(UPH)。

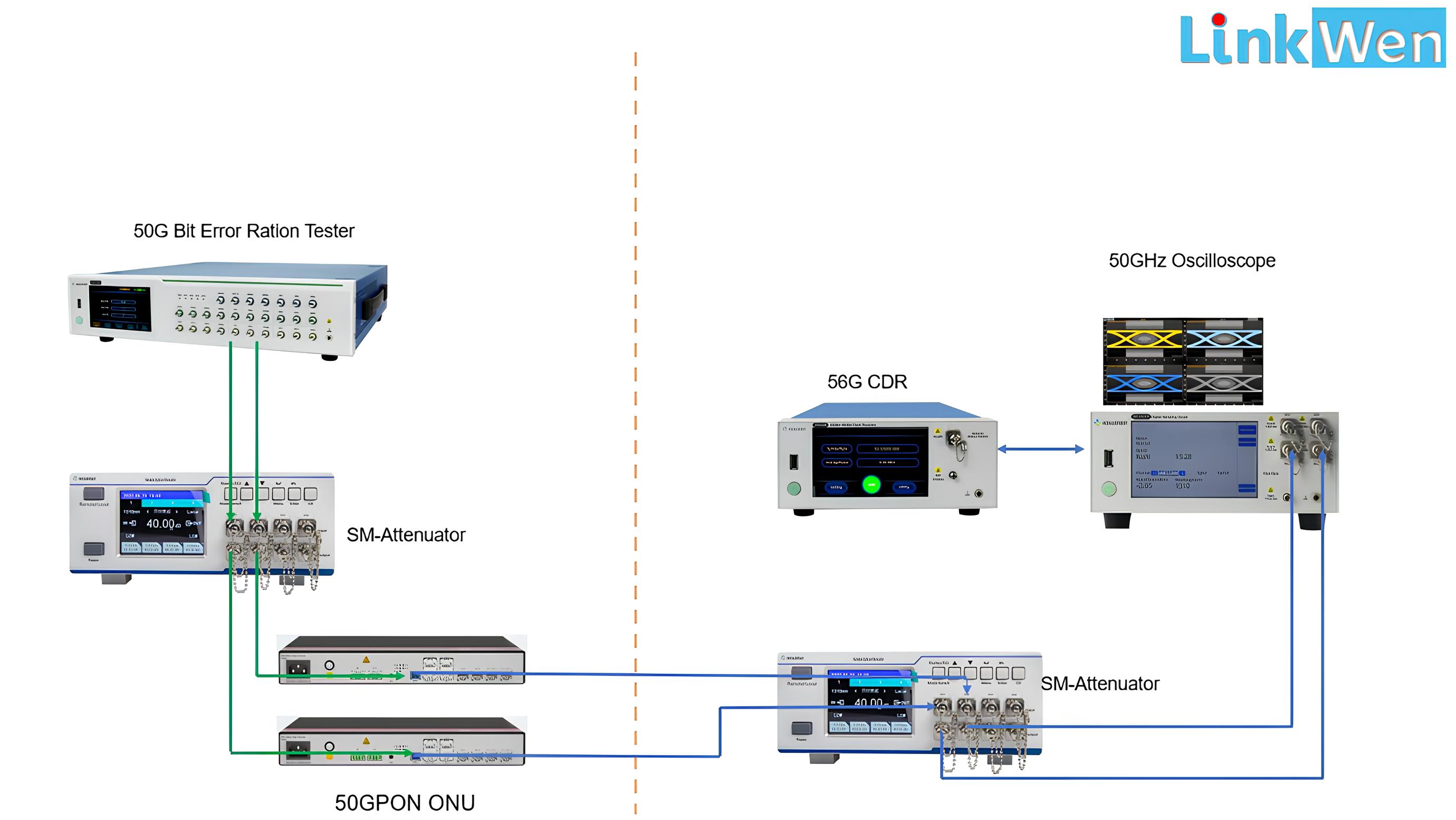

測試架構

聯恩電子的整合測試方案,其包含:
- 提高測試效率:測試時間更短、同時測試數量更多
- 靈高度客製化:軟體工程師直接協助產線流程整合
- 一站式整合:整合所有 ONU 需要的測試,簡易設置快速上線
- 跨區服務:台灣、越南、大陸到廠服務
特點
- 相容性:可整合 GPON / XGSPON/ 25GPON/50GPON
- 整合性:包含誤碼、眼圖、流量、連線、LED 測試等
- 高效率:多台 ONU 同時進入測試,提供高產出
- 自動化:軟硬體整合,自動化一站式測試

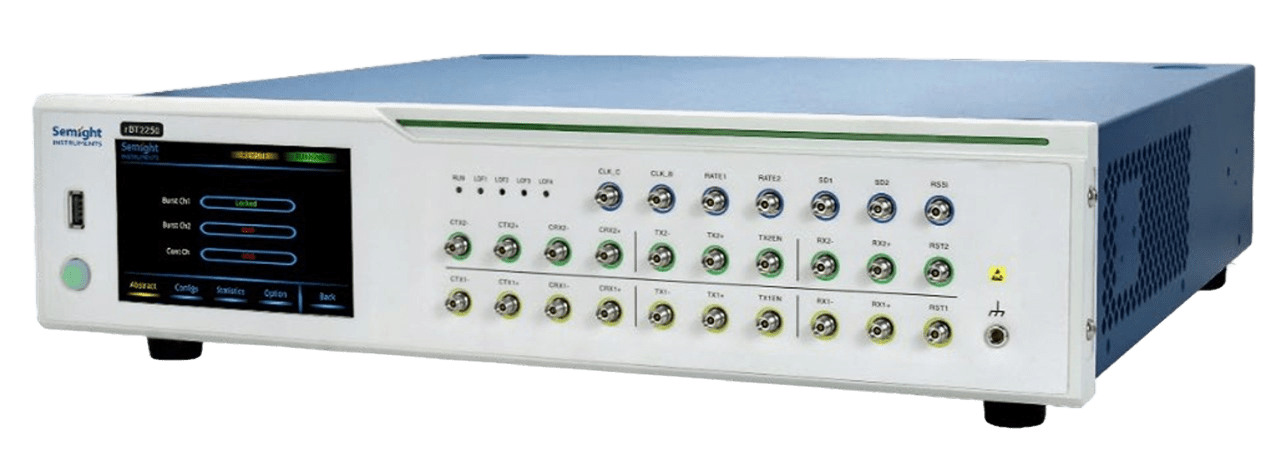

rBT3250-50GPON 誤碼分析儀
針對25G/50GPON 的誤碼測試儀, 用以評估 ONU & OLT 性能
rBT3250-50GPON產品規格:
● Multirate
Burst rate: 24.8832/25.78125/49.7664/51.5625 GBaud
● Downlink continuous error bits testing channel
2 channels with NRZ/PAM4 up to 50Gbps
● Control signal matching
Provide 2 synchronous ONU laser enable control signals or 2 synchronous reset control signals
● Rich trigger signal
Support 1 RSSI Trigger signal
Supports 1 Trigger signal
● High efficiency
Quick configuration download and fast hardware response speed, Support reset signal automatic positioning function
● Fully match ATE application
With powerful and flexible database management capabilities
規格書下載

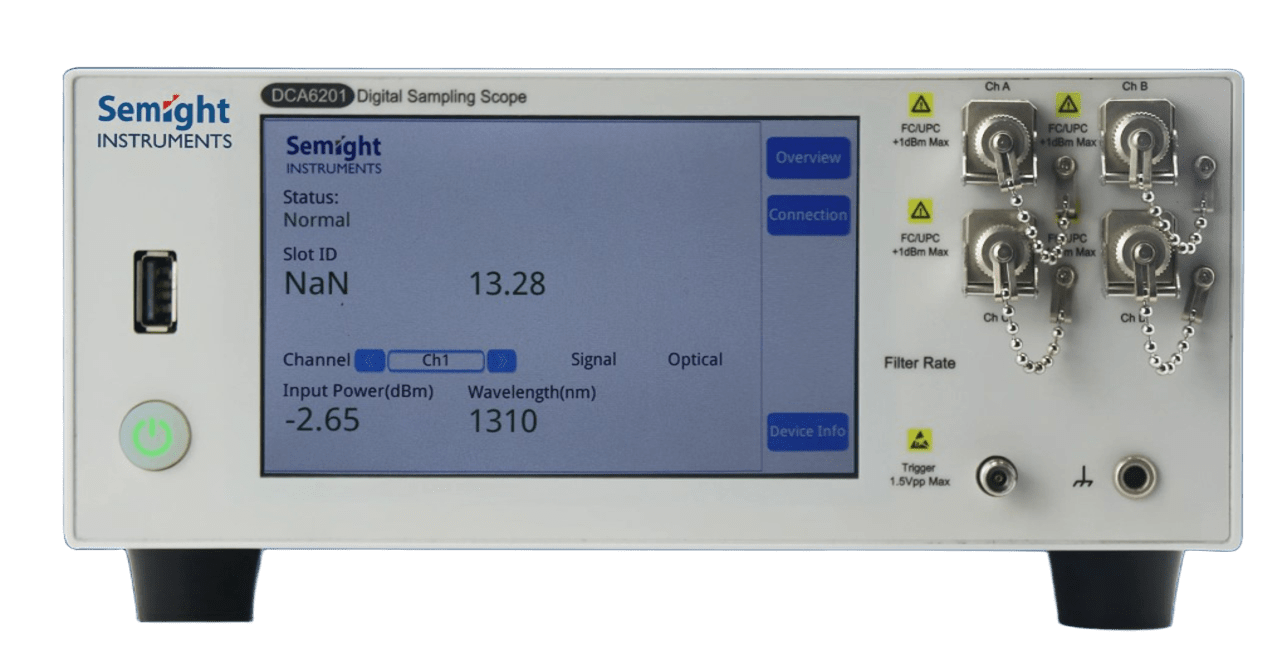

DCA6201-30G/50G 示波器

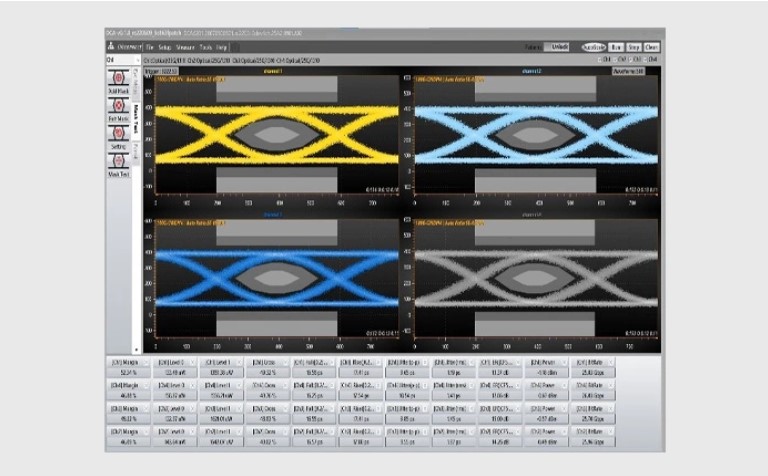

支持NRZ/PAM4 信號測試覆蓋20G~53GBaud 之間多種速率,可以支持最多4通道的眼圖測試,具備快速眼圖調整測試模式, 在此模式下, 消光比及平均功率可保持1Hz 的刷新速率, 提高測試效率.
DCA6201-30G/50G產品規格:
● Efficient measurement
Supports simultaneous measurement of all channels and parallel measurement
● Multiple measurement functions
Meets the normal NRZ and PAM4 eye diagram test parameters
● Automatic test
The remote command control mode is convenient and fast
● Ensure accurate performance
High performance ensures test consistency
規格書下載
CR6256-時鐘恢復模塊
支持 24.33~56.25GBaud速率的NRZ/PAM4信號時鐘提取
CR6256產品規格:
● Wide Range
Supports NRZ / PAM4 signal clock extraction at 49.7664~56.25 GBaud /24.33024~28.9 GBaud
● Easy to Use
With either touch lcd screen or flexible remote-control solution, the CR6256 can work with sampling oscilloscopes easily and quickly
● Wide Application
Complies with IEEE 802.3 Ethernet, PON, Fiber Channel, and OIF standards
● Excellent Performance
Fast locking speed under auto/semi-auto mode Ultra Low random jitter
● High Sensitivity
Very conducive to silicon photonic application with ultra-low input optical power
● More Application
CR6256 can be used with other sampling oscilloscopes in the industry
● Flexible Configuration
Single-Mode and Multi-Mode in one unit Supports both optical and electrical signal clock recovery (optional)
● Multiple Frequency Output
Supports 1/2, 1/4, 1/8, 1/16 It can meet the trigger bandwidth requirements of various sampling oscilloscopes in the industry
規格書下載
AT430X-單模衰減器
支持4通道各0-40dB範圍的任意調整衰減, 具備輸入及輸出光功率偵測功能,可在衰減調整過程 即時看到功率變化.
AT430X產品規格:
● Power Monitoring Function
Supports input and output power monitoring, monitor power range: +10~-50 dBm
● Power Lock
Supports decay mode and power control mode, automatically keep the output power constant in power control mode
● User-friendly Interface
Easy-to-use and intuitive graphical user interface
● Parallel Testing
Supports multi-channel parallel measurement to improve test efficiency
