DTG-100P full frequency signal transmitter PCI-Express board PCI-E Modulator Card

Features

Provide rapid testing and measurement, such as R&D testing, factory testing, and QA testing of tuners, demodulator chips, receivers, TVs, etc.

The OEM component in the integrated product functions like a DTV signal generator.

Quickly build broadcasting infrastructure.

Distinguishing feature

Support multiple modulation standards.

The PCI Express interface realizes a high transfer rate.

Supports multi-card installation on one PC.

High electric frequency output, wide electric frequency range, high-precision electric frequency.

Excellent signal quality, ultra-low phase noise.

UI supports Chinese and English language switching.

The software supports automatic test FM function.

The software supports signal flow analysis and channel table.

The software supports the playlist function, and can be configured for automatic loop playback of multiple signal streams.

The software supports automatic playback and configuration after booting.

Parameter memory function, suitable for production test.

Parameter configuration file export function.

Convenient license upgrade system.

Support remote control function.

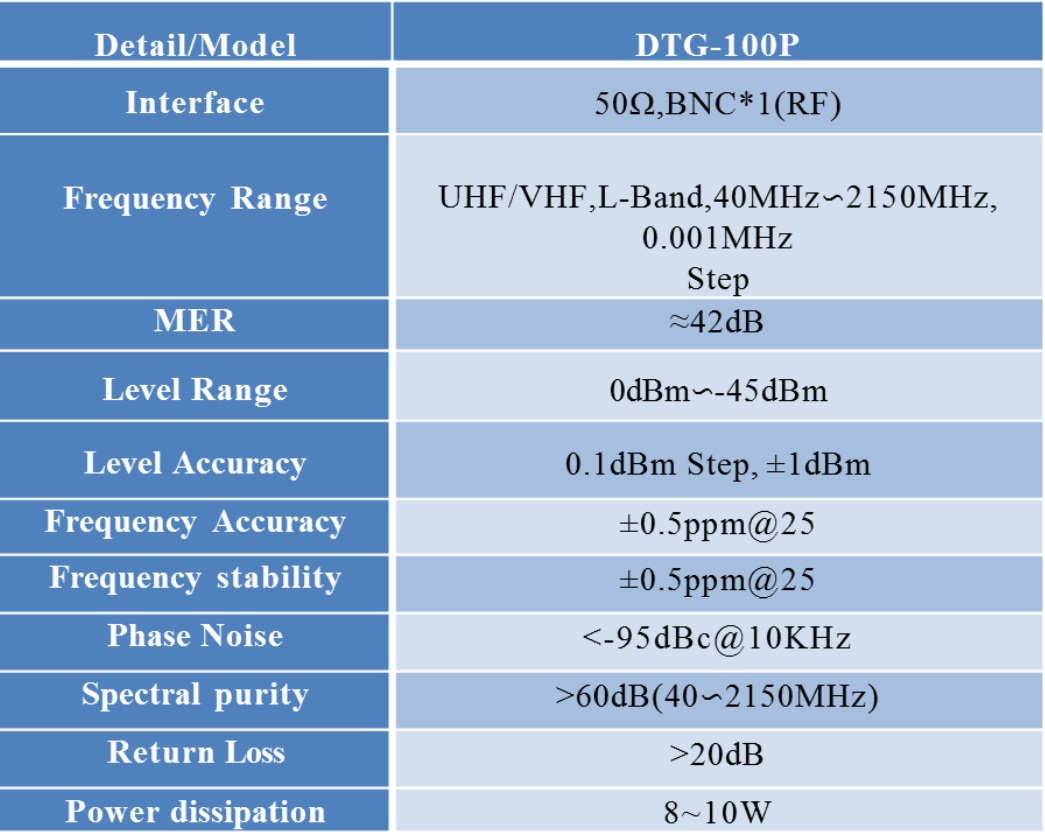

Product specifications

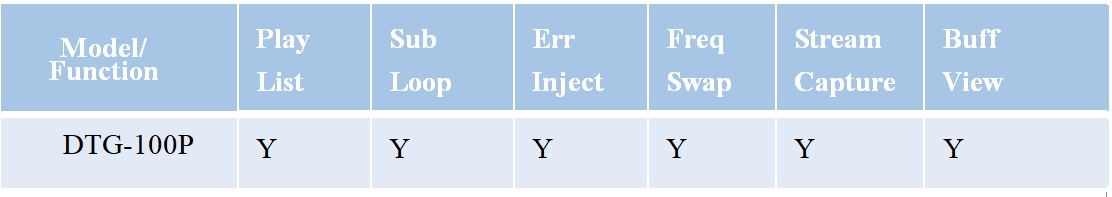

Software support

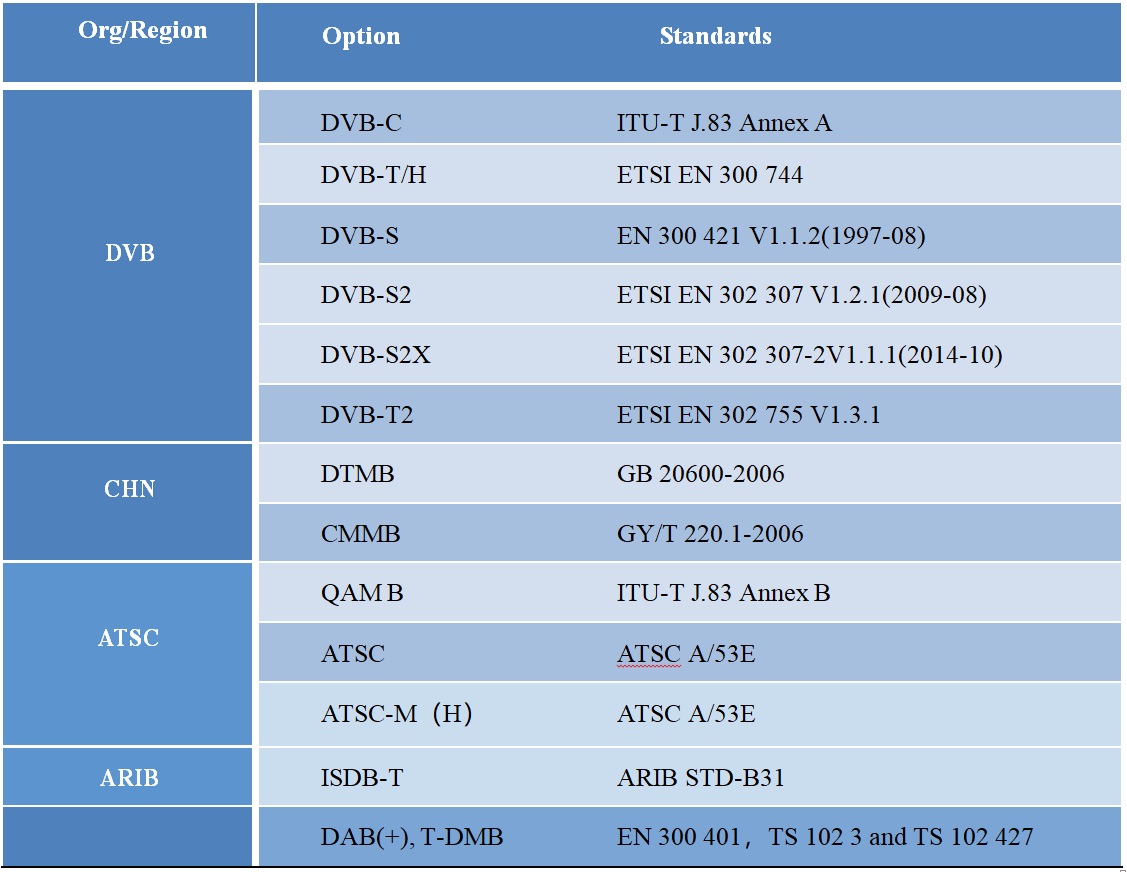

Configuration standard
