Solution Overview

Linkwen Electronics provides a new-generation, highly integrated ONU testing platform designed for production lines and R&D testing environments.

The system integrates functions such as BOB calibration, traffic generation testing, optical path switching, TX optical power measurement, and Wi-Fi coupling strength testing. It supports mainstream standards, including GEPON, GPON, XGPON, XGSPON, 25G PON, 50G PON, and FTT The modular architecture allows users to flexibly expand test boards and quickly configure the system according to production scale or application needs, significantly improving testing efficiency and accuracy.

---

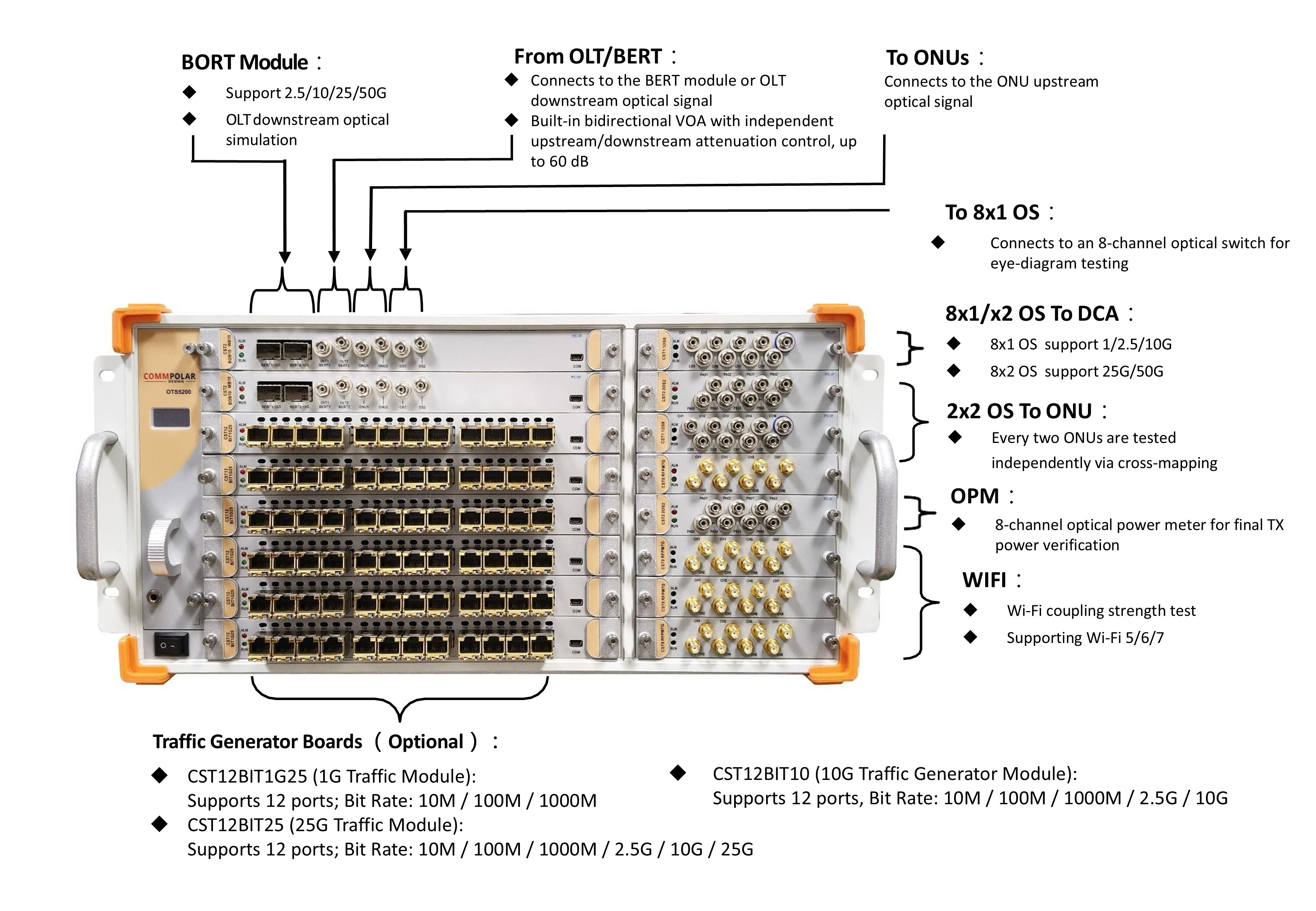

Interface Description

---

Platform Features

• Highly integrated all‑in‑one design: Built‑in optical, electrical, and wireless testing functions within a single platform.
• Flexible modular architecture: 5U standard chassis design with pluggable boards supporting customized configurations.
• Multi‑standard support: Compatible with GPON/EPON/XGPON/XGSPON/25G/50G PON and FTTR.
• Parallel multi‑device testing: Supports testing up to 16 ONU units simultaneously, greatly increasing production throughput.
• Intelligent Wi‑Fi testing: Built‑in Wi‑Fi coupling test module supporting Wi‑Fi 5/6/7.

Module Descriptions

1. BOB Calibration Module

• Supports multiple rates: 2.5G, 10G, 25G, 50G
• Built‑in bidirectional Variable Optical Attenuator (VOA), independently controlled for upstream/downstream
• Includes TX optical power meter and Bit Error Rate Testing (BERT)
• Functions as OLT simulation source for downstream ONU calibration

2. Traffic Generation Test Module

• Provides 1G / 10G / 25G board options, each supporting 12 ports
• Supports multi‑rate traffic generation and analysis (10M–25G)
• Capable of simulating TCP/UDP traffic, latency, jitter, packet loss, and other network behaviors

3. Optical Switch Module

• Used for eye diagrams and optical spectrum analysis
• Supports 1/2.5/10G, 25G, 50G PON
• High isolation (>50 dB) with switching time of only 5 ms

4. Wi‑Fi Coupling Test Module

• Supports Wi‑Fi 5 / Wi‑Fi 6 / Wi‑Fi 7
• Measures signal coupling strength, sensitivity, and channel isolation
