PoE Load Simulation Tester
PoE Load Simulation Tester
Professional, engineering-grade PoE testing for precisely replicating real-world power and data conditions
Solution Overview
The PoE Load Tester is a high-reliability test device designed to validate PSE (Power Sourcing Equipment) power-supply capabilities. With built-in multi-channel PoE load modules, it fully supports IEEE 802.3bt / 802.3af / 802.3at standards as well as non-standard PSEs. Whether used for field cabling verification, rapid production-line testing, or multi-port PSE coordination and power-sharing validation, it delivers stable, accurate, and highly efficient testing performance.

Key Features
- • Supports IEEE 802.3bt / 802.3af / 802.3at and non-standard PSE
- • Supports PD Class 4 and Class 8 power levels
- • Up to 90W maximum load per channel (model-dependent)
- • Dynamic load adjustment during testing
- • Complete PoE power-up sequence analysis, PSE type detection, and wiring-pair verification
- • High-efficiency thermal design ensures long-duration stability under high-power testing
- • Integrated PSE power analysis + up to 10Gbps Ethernet traffic-forwarding test
- • Ethernet-based management with an intuitive user interface
- • Standard 19-inch rack-mount design for easy scaling and stacking
Applications Scenarios
- • Continuous PSE power-supply capability testing
- • PSE compatibility and multi-port coordination testing
- • Power-verification for cabling and deployment projects
- • Fast and efficient PoE function testing on production lines
- • Multi-port PSE concurrency and long-term stability validation

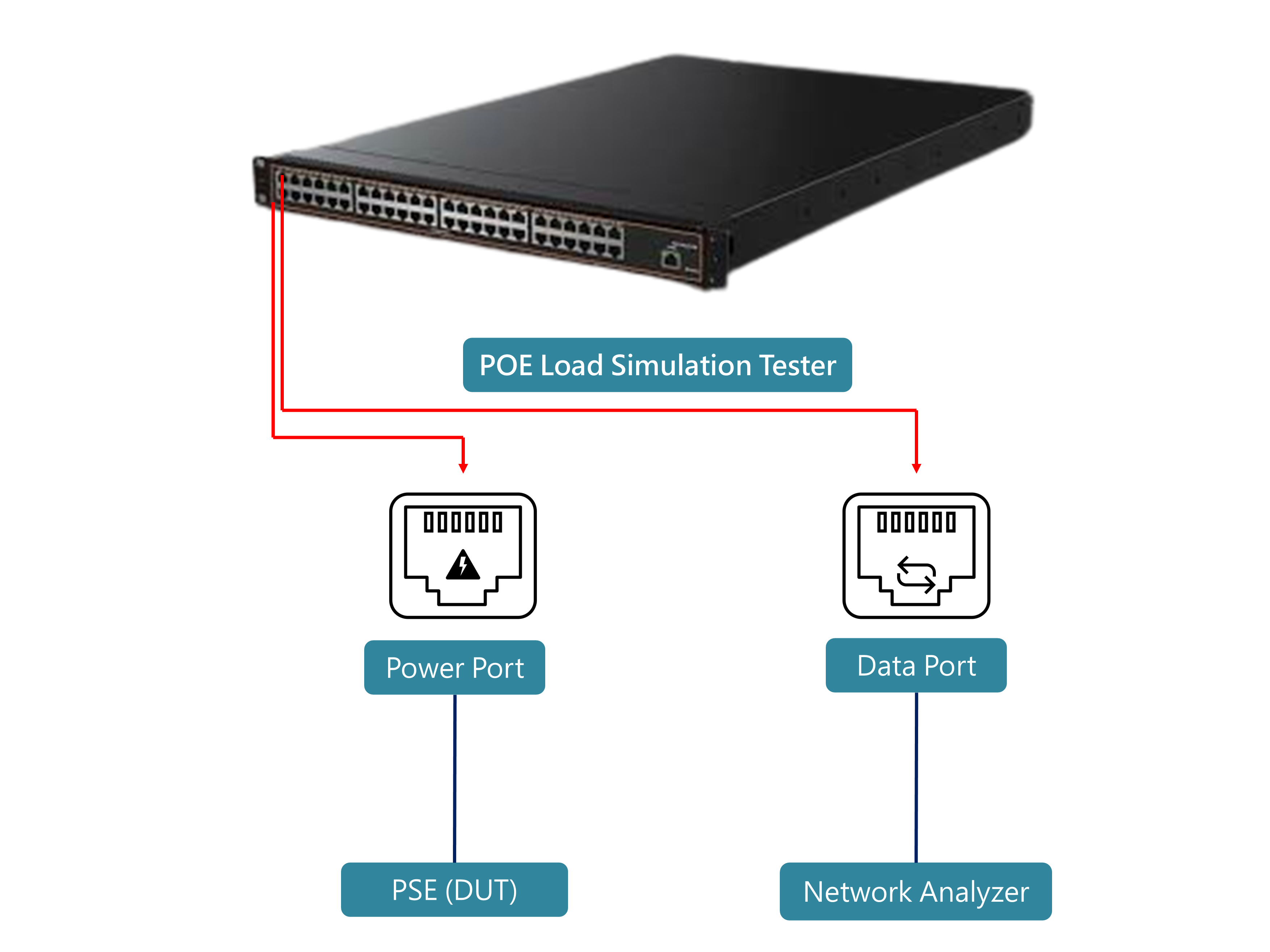

Diagram - PoE Function/Data Forwarding
Each channel includes two Ethernet ports:
• One port simulates a PD for PoE power-up and load testing
• The other forwards traffic to a network tester for throughput and performance measurement
Multiple PoE Load Testers can be used simultaneously to expand port capacity and support large-scale test environments.
.png)

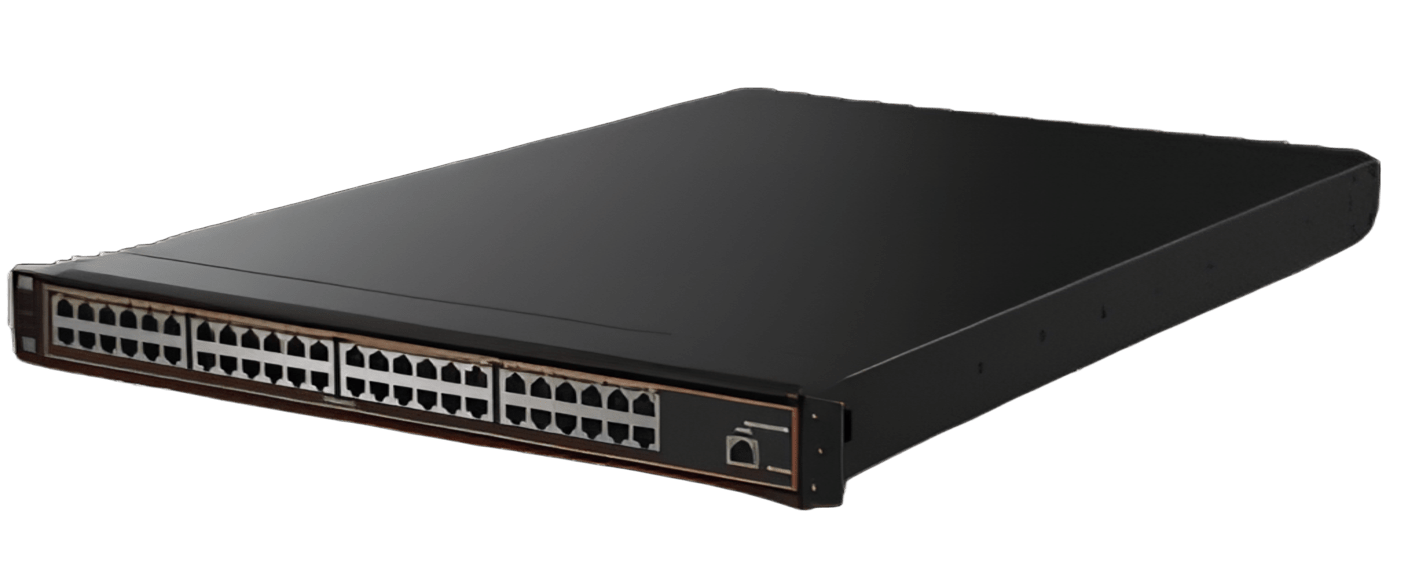

Model
| Model Type | Medium-Power PoE Load Tester | High-Power PoE Load Tester |
|---|---|---|
| Model | PD30P24A | PD90P24A |
| Channels | 24 | 24 |
| Power per Channel | 30W (±1.5W) | 90W (±2W) |
| Power Input | 1 × removable 220V AC Power | |
| Cooling | 3 × Fans Module | |
| Ethernet Speed | 10M / 100M / 1G / 2.5G / 5G / 10Gbps | |
| Standards | IEEE 802.3af / at / bt | |
| Dimensions | 440 mm × 660 mm × 43.6 mm | |
| Operating Temperature | -10°C ~ 40°C | |
| Storage Temperature | -10°C ~ 50°C | |
| Humidity | 0% ~ 85% RH (non-condensing) | |

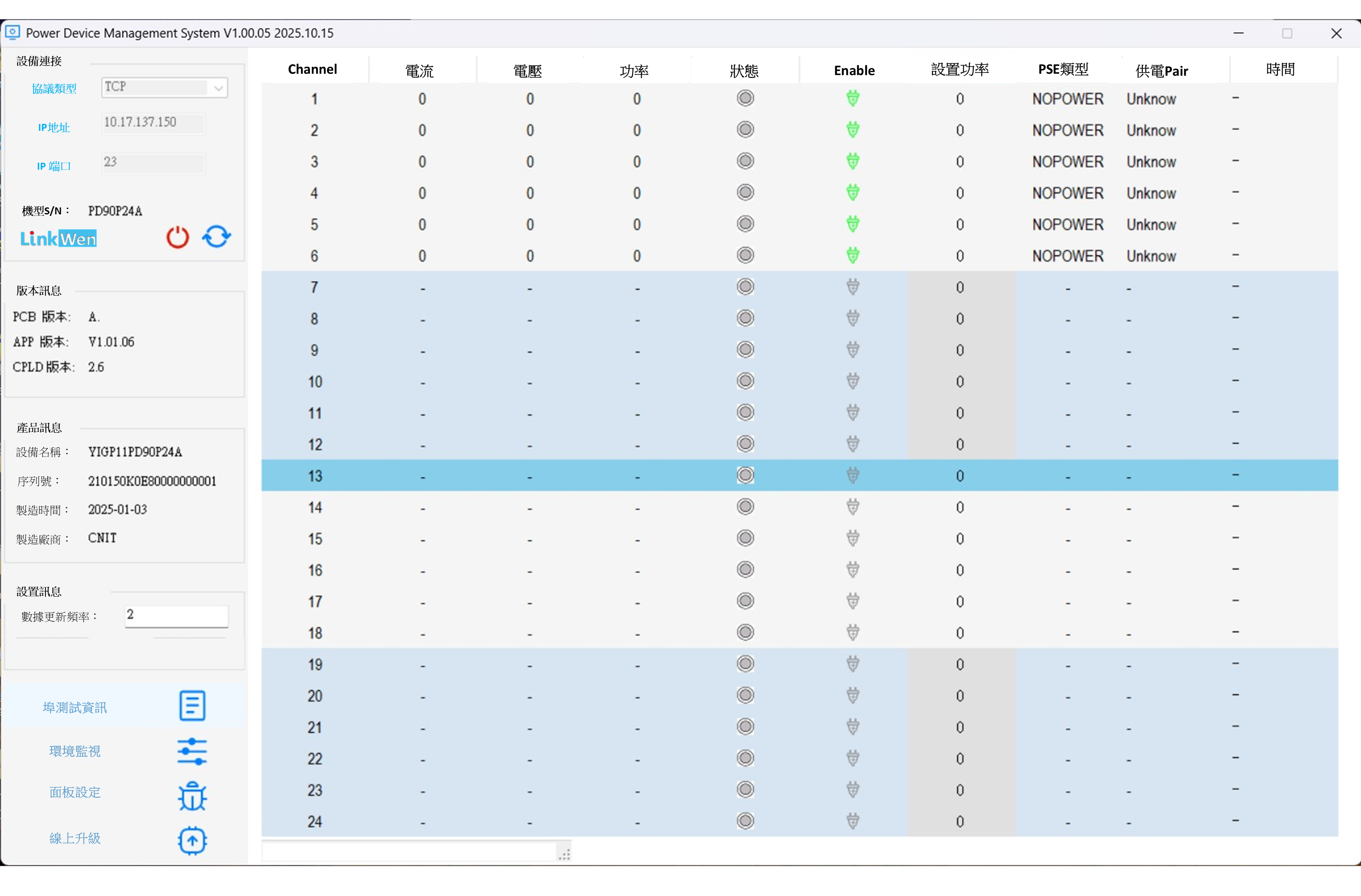

Software GUI
.png)
